Okay, so I finally got around to putting up that new fan and light combo in the bedroom. The old light fixture was just sad, and a fan is a must for summer. Let me walk you through how I tackled it.
Getting Started – Safety First!
First things first, I headed straight to the circuit breaker. Safety is no joke with electricity. I flipped the breaker for the bedroom, then double-checked with a voltage tester at the old light fixture. Dead. Perfect. You don’t want any surprises when you’re up on a ladder with wires in your hand.
Then, I gathered my tools. I needed a couple of screwdrivers (Phillips and flathead), wire strippers, a pair of pliers, and a handful of wire nuts. Oh, and the new fan, of course, all unboxed and laid out so I could see all the bits and pieces. The instructions looked okay, but I mostly go by feel with these things after doing a few.
Taking Down the Old, Making Way for the New
Getting the old fixture down was pretty simple. Just a couple of screws, and it came right off. I carefully untwisted the wire nuts connecting the old light. I saw three wires coming from the ceiling: a black one, a white one, and a bare copper one. Standard stuff. Black is usually your hot wire, white is neutral, and the bare copper is ground.
Next up was the mounting bracket for the new fan. This part is pretty important because it holds the whole thing up. I screwed the new bracket that came with the fan into the electrical box in the ceiling. Made sure it was good and tight.
The Wiring Part – Connecting it All Up
Now for the main event – wiring the fan. The fan motor itself is kinda heavy, so it’s a bit of a balancing act on the ladder. Luckily, a lot of these fans have a little hook on the bracket so you can hang the motor while you do the wiring. Lifesaver.

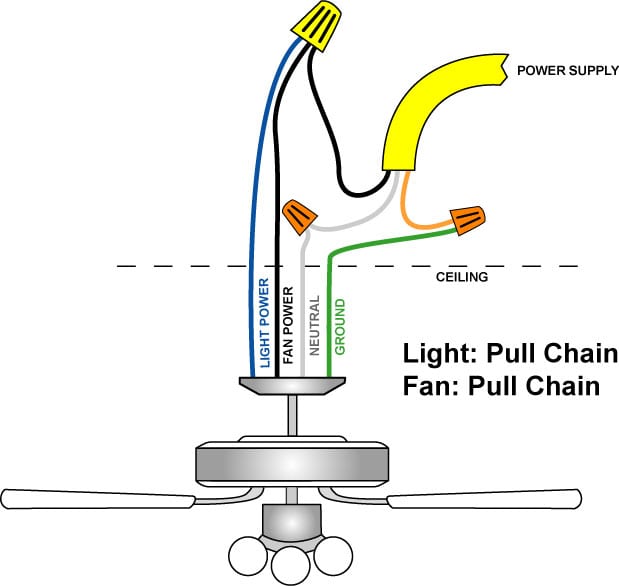

I looked at the wires coming from the fan motor. There was a black wire (for the fan motor), a blue wire (for the light kit), a white wire (neutral), and a green wire (ground).
- I took the green ground wire from the fan and the bare copper ground wire from the ceiling and twisted them together. Then I capped them off with a wire nut.
- Next, I connected the white neutral wire from the fan to the white neutral wire from the ceiling. Twisted and capped.
- Then, I connected the black fan motor wire from the fan to the black hot wire from the ceiling. Twisted and capped.
- Finally, the blue light kit wire from the fan also got connected to that same black hot wire from the ceiling. This house is wired so one switch controls both, so they both go to the single hot wire. If you have separate switches, it’s a bit different, but mine’s simple. Twisted that and capped it off.
I gave each connection a little tug to make sure the wires were secure in the nuts. Don’t want anything coming loose.
Getting it All Assembled
With the wiring done, I carefully tucked all the wires up into the electrical box. Then I lifted the fan motor assembly and secured it to the mounting bracket, usually with a few screws. This can be a bit fiddly, but I got it.
After the main motor was up, it was time for the fan blades. I screwed each blade onto its bracket, and then screwed the blade brackets onto the motor housing. Pretty straightforward, just a lot of screws.
The light kit was next. It usually has its own little set of wires (a black and a white, or a blue and a white) that plug into corresponding connectors from the fan motor housing. I connected those, then attached the light kit itself to the fan. Put in a couple of light bulbs.
The Moment of Truth
Alright, everything looked good and secure. I climbed down the ladder, cleared my tools away from the switch area. Then I went back to the circuit breaker and flipped it back on. Held my breath for a second… no sparks, no weird noises. Good sign.
Back in the bedroom, I flipped the wall switch. Success! The light came on. Then I pulled the fan chain, and the fan started spinning. I cycled through the speeds – low, medium, high – all working perfectly. The other chain turned the light on and off independently too. Fantastic.
So, yeah, that’s how I wired up the new fan and light. Took a bit of time, mostly just being careful and making sure everything was tight and connected right. But it’s definitely a doable job if you take it step by step. The room feels so much better now!
